Portable Evaporative Air Cooler Fan with Smart Timer Control

Structured Cooling with Multi-Function Design

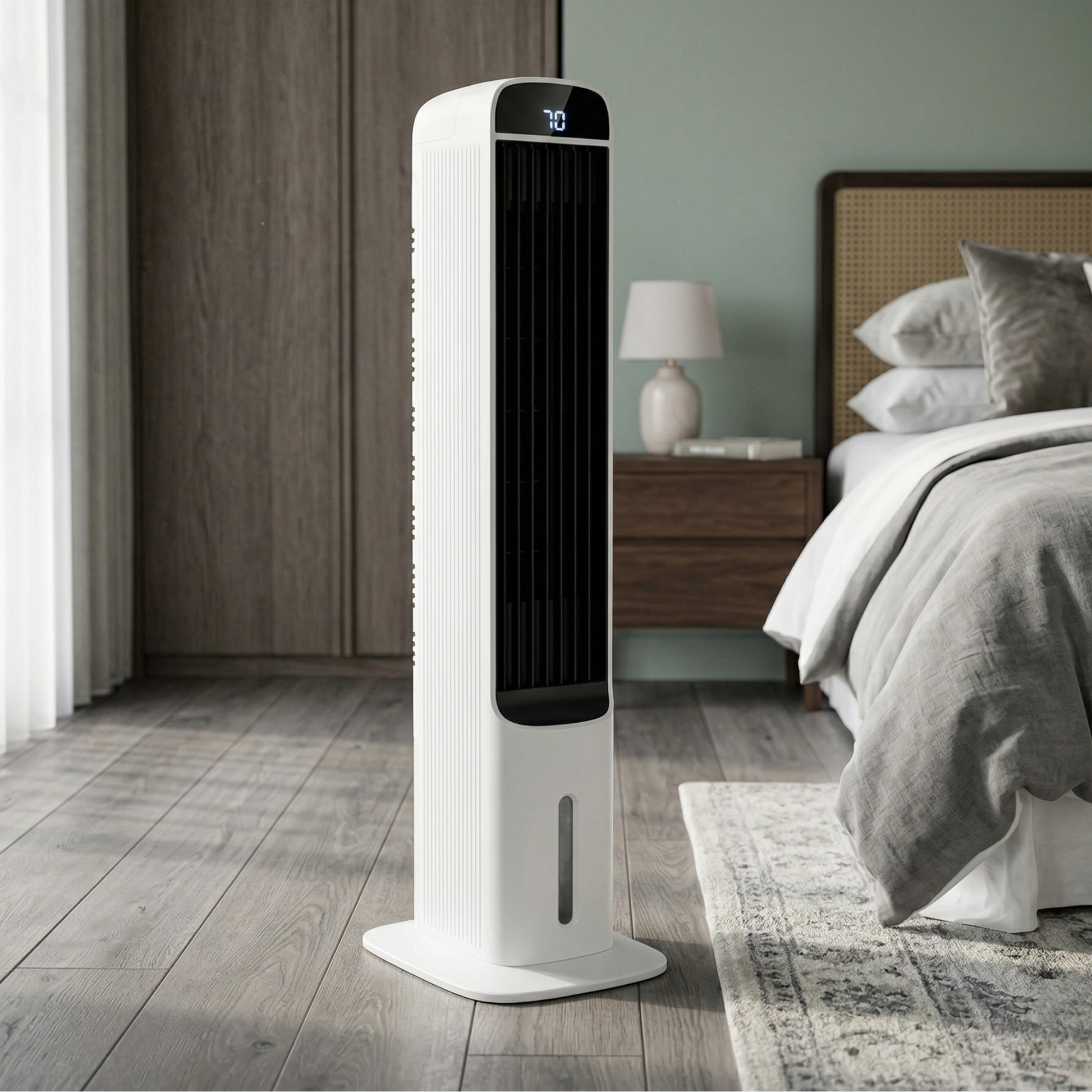

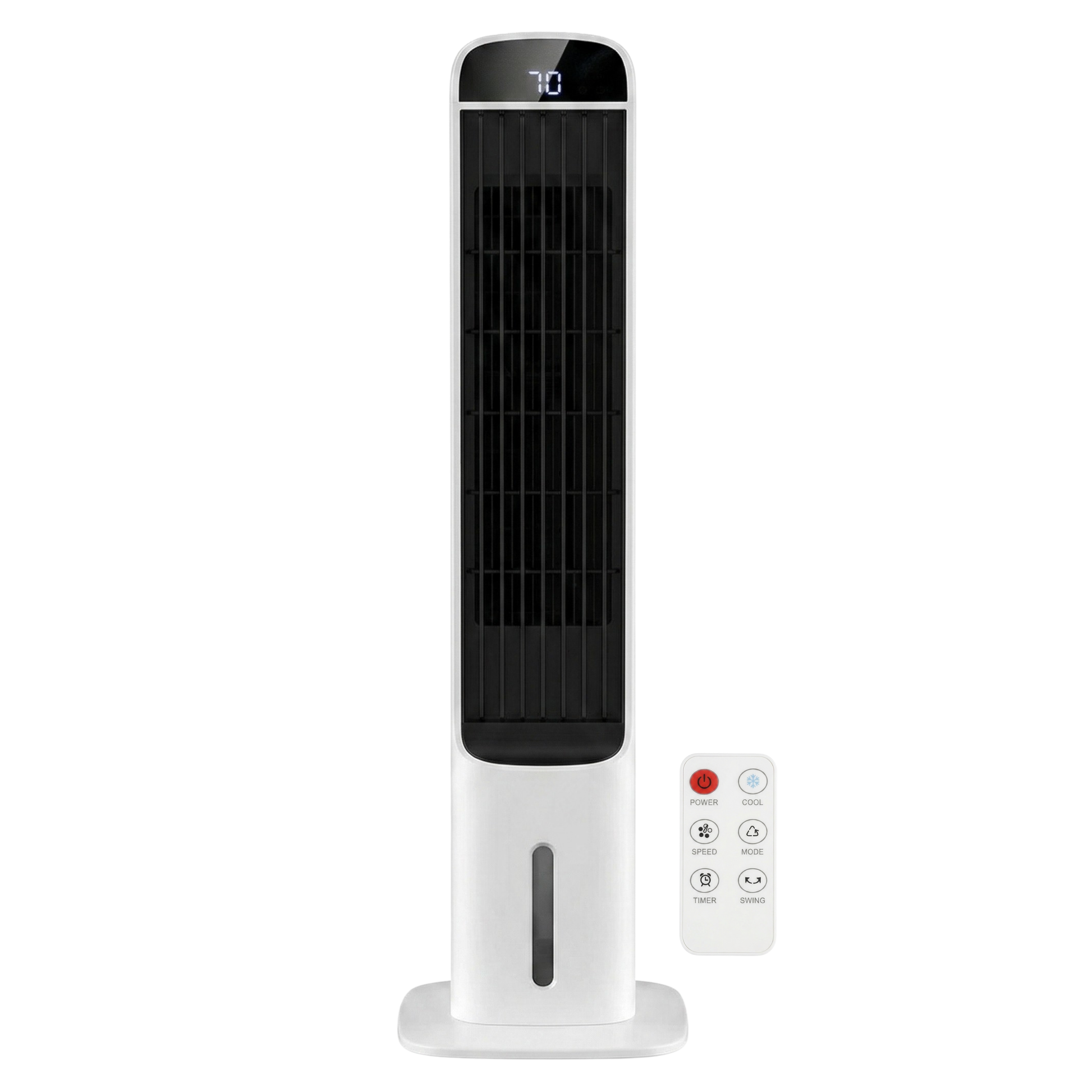

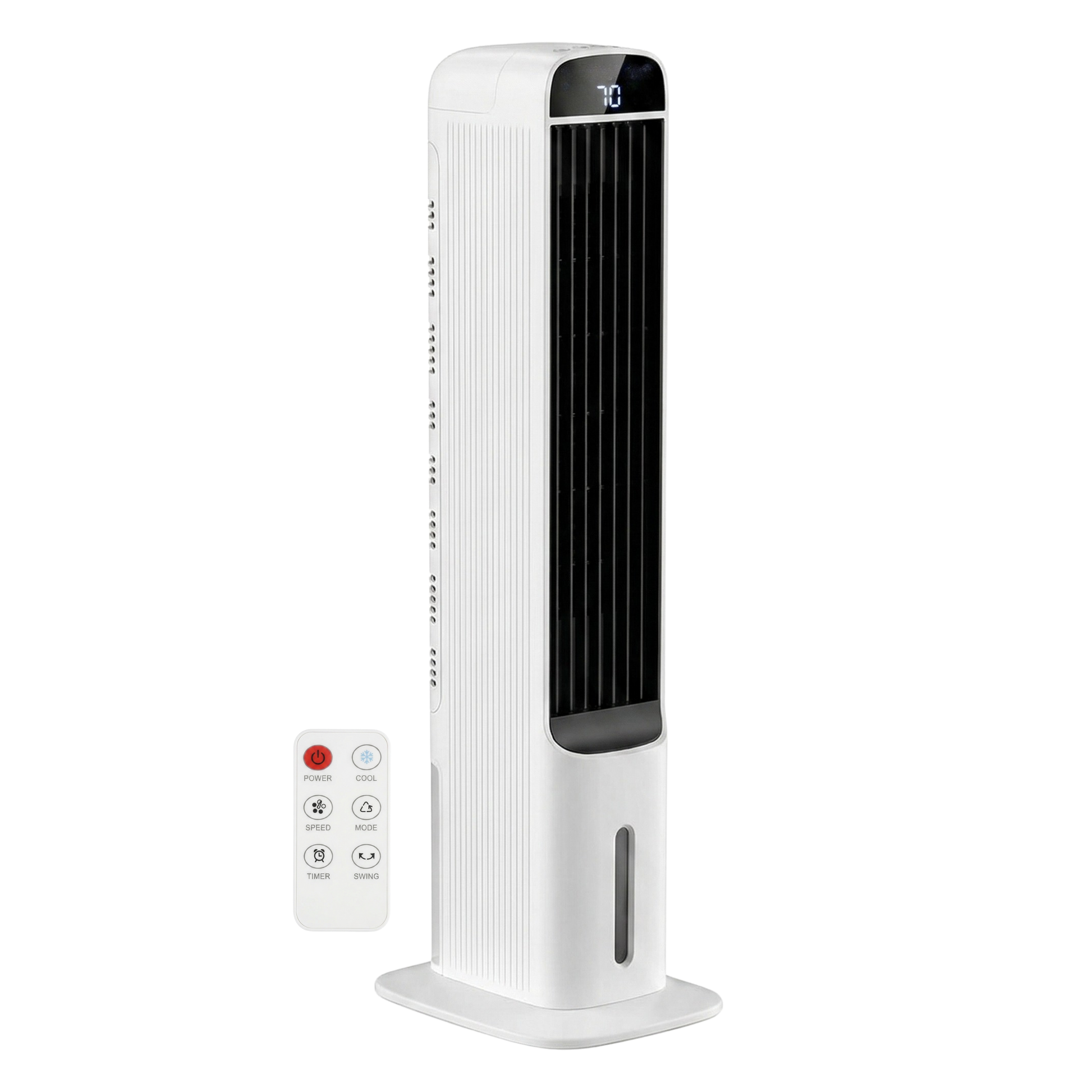

This evaporative air cooler combines airflow circulation, moisture output, and localized cooling in one unit. The vertical tower form measures 42-in in height, allowing air distribution at seated and standing levels. A 1.3-gallon water tank supports extended operation without frequent refilling. The internal cooling pad system works with included ice packs to adjust airflow temperature during use. Its 6 by 8-in base fits alongside furniture without requiring additional floor clearance. The freestanding structure does not require installation or window access.

Controlled Airflow with Adjustable Settings

The unit includes four operating modes and three fan speeds that regulate airflow intensity and pattern. A 12-hour timer allows scheduled operation during day or night routines. The 120-degree oscillation function distributes air across wider room areas instead of a fixed direction. A digital display shows room temperature for reference during use. Controls are accessible through a top panel and a handheld remote for adjustments across the room. The system operates at approximately 32 db, maintaining consistent sound output during operation.

Practical Setup and Everyday Use

The cooler operates on a standard 120-volt AC connection with an 80-watt power rating. The water tank can be filled from the top or removed for direct filling at a sink. A detachable cooling pad allows access for cleaning and routine maintenance. Built-in carrying handles support repositioning between rooms. The unit weighs approximately 8 lb, allowing movement and storage when needed. No tools or assembly steps are required before operation.

Product benefits:

• Simple Controls: Top panel and remote allow direct setting changes.

• Flexible Placement: Freestanding design fits bedrooms, offices, and shared spaces.

• Portable Structure: Light build with handle supports room-to-room movement.

• Accessible Cleaning: Removable tank and cooling pad allow straightforward maintenance.

• Timed Operation: Timer allows automatic start and stop based on schedule.

Specification:

• Material: Plastic housing with internal cooling pad

• Dimensions: 6 x 8 x 42 in

• Weight: 8 lb

• Power Source: 120V AC plug

• Power Consumption: 80 watts

• Cooling Power: 0.08 kW

• Water Tank Capacity: 1.3 gallons

• Noise Level: 32 dB

• Airflow Coverage: Up to 350 sq ft

• Oscillation: 120 degrees

• Timer: Up to 12 hours

• Included Components: Remote control, 4 ice packs, removable water tank, cooling pad
